Mounting press / hot mounting press ECOPRESS
Types 102 | 202 fully automatic mounting presses
The ECOPRESS series of hot mounting presses are easy-to-use, fully automatic mounting presses with an integrated electro-hydraulic pump (no compressed air required). The robust bayonet lock allows the press cylinder to be opened and closed efficiently. Press cylinders with a diameter of 25 / 30 / 40 / 50 mm (option: inch) are available according to customer requirements. With an intermediate piston, 2 samples (types 52 / 102) or 4 samples (type 202) can be embedded at the same time.
- mounting presses ECOPRESS 102 – 1 cylinder, SIEMENS PLC control < 25 embedding sequences. The self-explanatory operating software can be programmed in seconds using the 7″ touchscreen – including sequence cooling for embedding in clear acrylic – avoids “cloud formation”
- mounting presses ECOPRESS 202 – 2 cylinders – individually usable, otherwise like type 102
Would you like even more information?
Click here & download PDF!

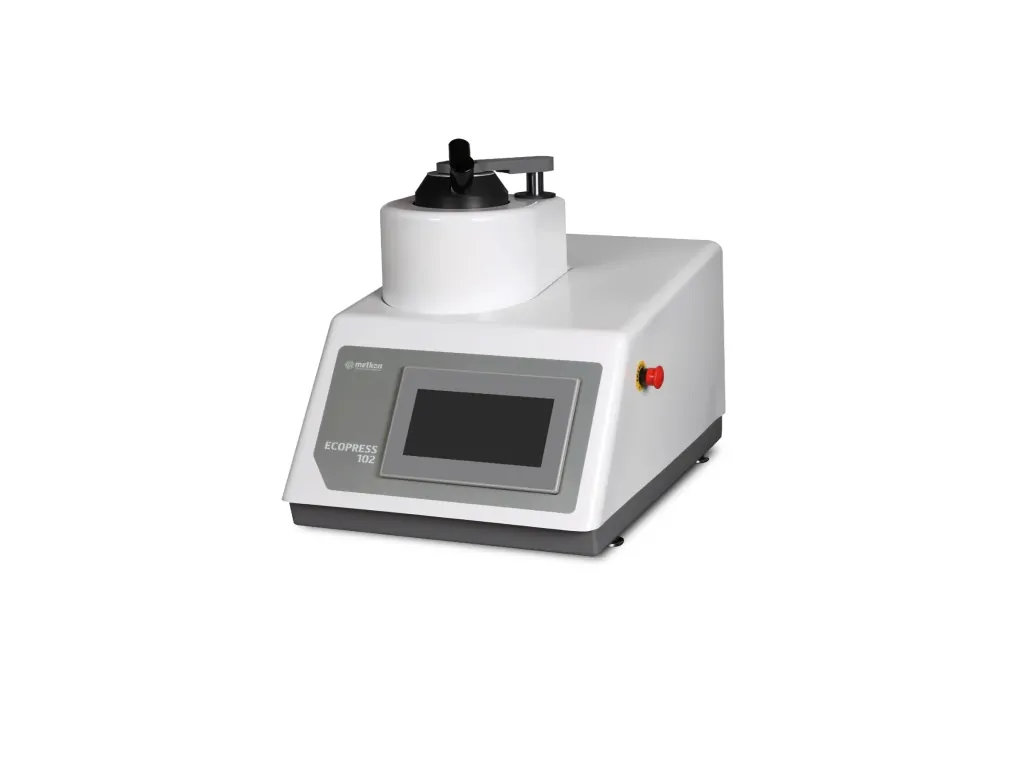

ECOPRESS 102 hot embedding device with SIEMENS control
programmable, fully automatic embedding press with a press cylinder
Programmable, automatic hot mounting press with 7″ HMI touchscreen control, with Siemens PLC control unit, programmable via a color LCD display, program-based mounting sequences, electro-hydraulic pressure (requires no compressed air), mounting pressure up to 300 bar, temperature up to 200°C, mounting sequences up to 35:00 minutes, short cycle time, thermostat-controlled heating power of 1650 W, automatic cooling cycle with three modes of cooling rate (standard cooling, slow cooling and time intervals), programmable preheating and pre-pressure, standby temperature, selectable molds from 25 mm to 50 mm (also imperial), easy-to-lock bayonet lock, end of mounting sequence signal, delivered ready for use, 230 V, 1-phase, 50/60 Hz. Molds must be ordered separately.
ECOPRESS 202 hot mounting presses: SIEMENS control + 2 mounting cylinders
advanced – programmable – fully automatic
Programmable, automatic hot mounting press with 7″ HMI touchscreen control, with Siemens PLC control unit, programmable via a color LCD display, program-based mounting sequences, electro-hydraulic pressure (requires no compressed air), mounting pressure up to 300 bar, temperature up to 200°C, mounting sequences up to 35:00 minutes, short cycle time, thermostat-controlled heating power of 2 x 1650 W, automatic cooling cycle with three modes of cooling rate (standard cooling, slow cooling and time intervals), programmable preheating and pre-pressure, standby temperature, selectable molds from 25 mm to 50 mm, easy-to-lock bayonet lock, end of mounting sequence signal, delivered ready to use, 230 V, 1-phase, 50/60 Hz. Molds must be ordered separately.
