A GALDABINI universal testing machine/ tensile testing machine can be used for all quasi-static tests (tensile test, compression test, bending test, cyclic tests). By upgrading a Quasar universal testing machine, it becomes a tensile testing machine/compression testing machine/flexing testing machine.

To use a universal testing machine for a wide range of applications, several testing tools are often required. To minimize changeover time, QUASAR universal testing machines are equipped with a pin system. A clamping tool with a bushing (female) is mounted onto the pin (male), secured with a locking pin, and counter-locked with a lock nut to prevent kickback in case of specimen breakage or play. This counter-locking is particularly important when performing tests with a zero-force crossing.

ZIP download

Download ZIP and study photos

clamping equipment for schools, vocational schools, universities

inexpensive wedge screw clamps THS527-20 / threaded head clamping device

wedge screw clamp THS527-20
TH179 Clamping device round specimen threaded head

We supply suitable clamping devices for all testing tasks (including those from other manufacturers and for all types of universal testing machines ). We would be happy to select a suitable clamping device for you. For this, we require any existing standards/standard excerpts along with a description of the sample/test specimen. You are also welcome to send us your samples for evaluation. However, a photo of the test specimens is usually sufficient (ideally with a scale/ruler visible in the photo). If you would like to make a selection yourself or simply browse our selection, you can find a download link here to download a ZIP file from our server. Download link for ZIP file (photos): Available clamping devices (61 MB)

Shelf various clamping devices Universal testing machine
Various clamping devices Universal testing machine

Hydraulic clamping device parallel closing

for material with high strength

Hydraulic clamping device parallel closing

clamping tool press hardening / hot forming / hot deforming

Tensile test on hardened sheets with strengths of 1500 to 2000 MPa

The modern technology of press hardening presents the automotive industry with increasing challenges. The tensile specimens for these tests are
a.) extremely hard (requires a clamping device with hydraulic external force clamping)
b.) extremely short because it is taken from 3D parts (A-pillar / B-pillar / sill / crumple zone). The following (short / extremely short) sample shapes are common:
– tensile test ISO 6892-1 or DIN 50125 – Type A50 (total length 165 mm / width in the measuring length 12,5 mm (essentially corresponds to the tensile test specimen according to ASTM type 1/2 inch)
– non-standardized tensile test specimen (based on ISO 6892-1 or DIN 50125) type A30 (total length 130 mm / width in the measuring length 5 mm (almost corresponds to the tensile test specimen according to ASTM type “subsize” length 100 mm

For this challenge, GALDABINI has developed the unique gripping device shown here for extremely hard and short tensile specimens (suitable for tensile strengths up to 2200 MPa with a shortest length Lt 100 mm

Tensile test on a very short sample

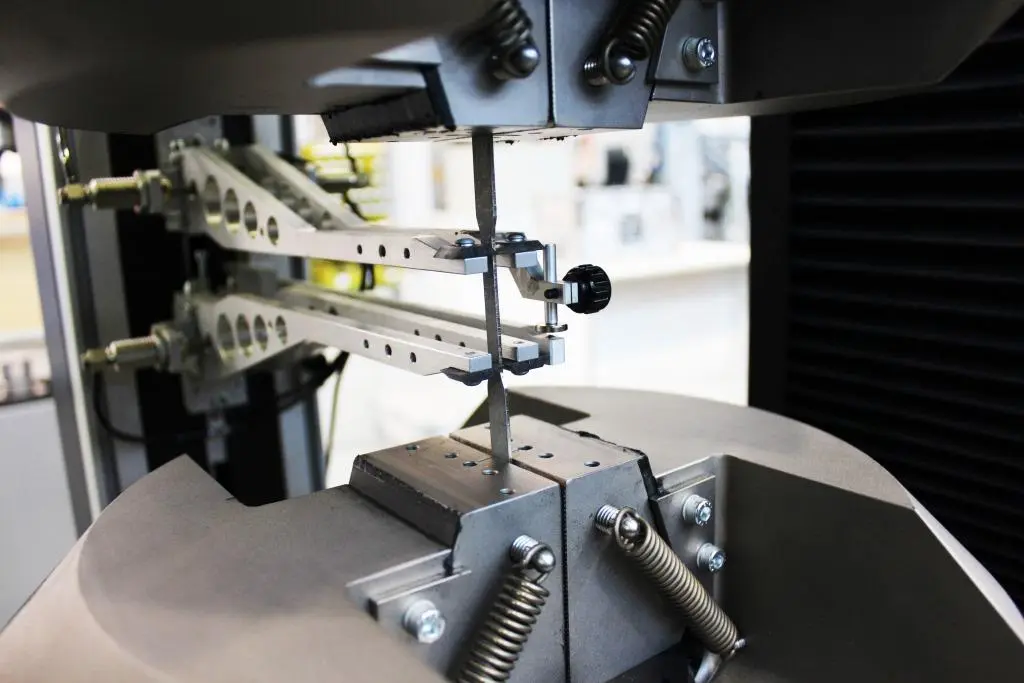

Hydraulic wedge clamping device for extremely short samples
wedge clamping device with hydraulic closing force
