Galdabini Galdabini straightening machine for gear shaft

GALDABINI - since 1890 — GALDABINI – since 1890

Even if the automotive components market is still the most important market, a large number of different markets are supplied with straightening solutions. GALDABINI has a great deal of experience in straightening all types: a wide variety of workpieces and a wide variety of shapes, sizes, materials and for every application. In the individual areas you will find some of the most common straightening applications. If you cannot find "your" application, please remember that GALDABINI is not limited to the systems shown here. Rather, it is "Standard" to deliver a customized solution tailored to your needs and the specific requirements of the application.

bending straightening for car components

Automated straightening machines

On this sample board we show some samples from the automotive sector that bending straightening brought into a manufacturing tolerance in order to then subject them to further processing steps (grinding of running surfaces, machining, etc.)

camshafts
Crankshafts
rocker arm
starter shafts
transmission shafts
Gear levers
Racks
pinion
axle shafts

All these products are part of our typical standard program for straightening tasks

straightening steering racks

straightening of steering pinions

straightening of bevel gears

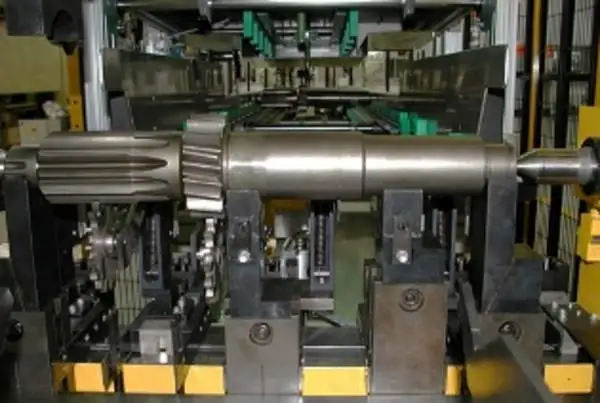

straightening of output shafts

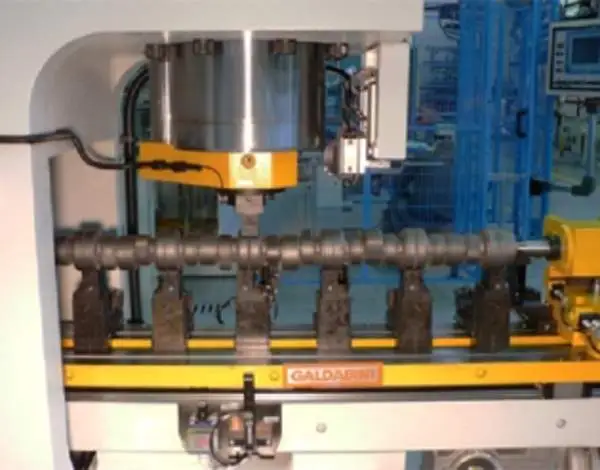

straightening camshafts

straightening Tulip axle shafts

Straightening of components for trucks

GALDABINI is the world leader in straightening technology for truck components

One of the largest fields of application for the bending straightening machines developed and manufactured by GALDABINI is the automotive sector. GALDABINI straightening machines are used worldwide and are usually integrated into automated production lines.

If, for example, a rotationally symmetrical part has been hardened, the distortion caused by the heat treatment must be removed. The shafts, axles, camshafts or similar are placed in the machine using an appropriate feed system, where they are measured for concentricity and straightened at a point determined by the software. On this page you will find photos of straightening machines for the following truck components:

axle shafts
camshafts
Drive Shafts
output shafts
Crankshafts
drive shafts
output shafts for tractors

straightening of crankshafts

Straightening of axle shafts of commercial vehicles

straightening camshafts

straightening drive shafts

straightening of output shafts

straightening of cardan shafts

straightening of tractor output shafts

Automatic straightening machines

Profiles Linear guides Racks

straightening square racks

straightening linear guides

straightening special profiles

Straightening guides in U-shape

straightening lift rails

Automatic straightening machines pipes

GALDABINI is a leader in the field of automated straightening technology for pipes

In most cases, these straightening machines are integrated into ongoing production. However, it is also possible to feed these machines manually and only have the straightening process carried out automatically. The pipe is first measured for straightness using touch systems or non-contact using a laser measuring system. Immediately afterwards, the supports/abutments are adjusted accordingly by the control system and the straightening process begins. The system can be expanded so that no operator intervention is required.

straightening of pipes

Straightening of pipes hydraulic cylinders

straightening of special pipes

Automatic straightening machine rings

Since 2008, GALDABINI has been manufacturing and supplying straightening machines for special applications

These are used to straighten the components shown below. The ring is placed horizontally, fixed with special clamping systems and the concentricity is measured precisely. Depending on the deformation, the straightening machine determines a suitable point to eliminate ovality or other deformations.
